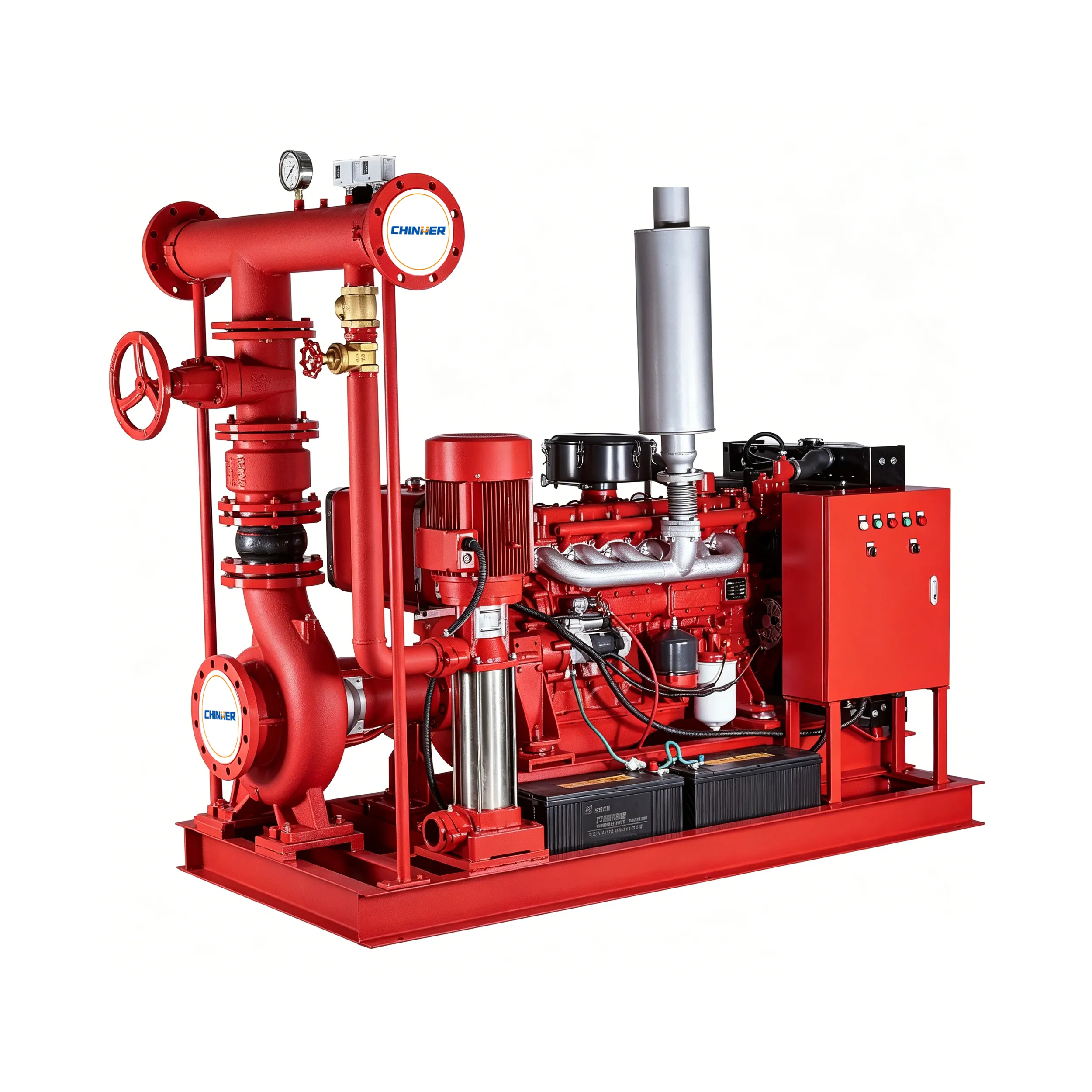

This diesel driven fire pump system is an integrated firefighting solution primarily composed of a diesel engine fire pump, a jockey pump, and a dedicated pump controller. The system is designed to remain fully operational during power outages, delivering reliable and immediate firefighting support when electric power is unavailable.
Applications
The system is suitable for a wide range of settings, including:
– Industrial facilities
– Commercial buildings
– Municipal infrastructure
– Remote areas
– High performance delivery: The diesel fire pump provides high flow rates and sufficient pressure to meet demanding firefighting requirements.
– Jockey pump integration: Maintains system pressure during standby mode, prevents unnecessary cycling of the main pump, and extends overall service life.
– Intelligent controller: Supports both automatic and manual operation modes to adapt to different application scenarios.
– Comprehensive protection & safety: Includes automatic alarms and shutdown functions for abnormal conditions such as:
– Loss of speed signal
– Overspeed / underspeed
– Low oil pressure / high oil pressure
– Excessive oil temperature
– Engine start failure
These features help prevent equipment damage, reduce operational risks, and ensure long-term reliability.
– Real-time status monitoring: Clear display of operating modes, including standby, power-on, fuel supply, engine starting, start delay, emergency delay, normal operation, and emergency shutdown.
– User-friendly interface: Improves system transparency, simplifies operation and maintenance, and enhances emergency response efficiency.
This configuration ensures dependable, safe, and efficient performance in critical fire protection applications.
| Medium | Clean water |
| Flow | 50 to 2500 GPM |
| Head | 6 to 14 Bar |
| Speed | 2900 L/min(50hz) 3500L/min(60hz) |
| Diesel | Engine-matched per model |
| Control Mode | Fully automatic (manual & remote options available) System Configuration |
Note: Custom configurations are available for special requirements (higher flow/pressure, explosion-proof design, seawater compatibility, etc.).
