Applications
It works great for:
– Water supply (filtration, main pipe pressurization, distribution)
– Pressure boosting and cleaning systems
– Firefighting sets
– Irrigation (farmland, greenhouses)
– Industrial uses (boiler feed, cooling, air conditioning, machine tool support, light acid/alkali transfer)
– Water treatment (distilled water, swimming pools, separators)
– HVAC and circulation systems
– Agricultural and sanitation applications

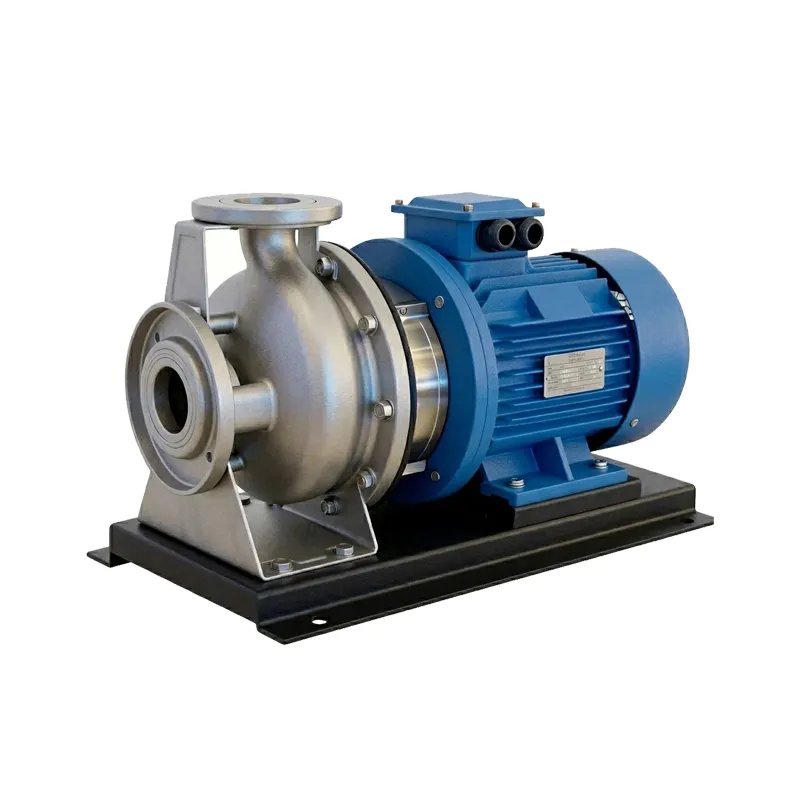

This is a horizontal single-stage end-suction centrifugal pump built to the new EN733 standard. It’s made mostly from stainless steel (with some options in cast iron or galvanized parts) and designed for moving clean water or mildly aggressive liquids. The pump has a tough anti-corrosive coated case, a stainless steel AISI 304 or cast iron impeller, stainless steel AISI 304 or galvanized iron shaft, galvanized counter flanges with all the bolts/nuts/gaskets included, quality NSK bearings, and a wear-resistant mechanical seal. You can pick either a square or round high-efficiency YE3 motor (IP55 protection, Class F insulation). It runs continuously (S1 duty), handles liquid temps from -10℃ to +120℃, ambient up to +50℃, and works up to 16 bar max pressure.
– Stainless steel construction (especially wetted parts) for good corrosion resistance and handling mildly aggressive fluids
– High-efficiency YE3 motor that saves energy and runs cooler/quieter
– Anti-corrosive coated pump case for longer life
– Options for stainless steel or cast iron impeller and different shaft materials to match your needs
– Quality bearings and durable mechanical seal – low maintenance and long-lasting
– Compact, lightweight design thanks to stamping, welding, and hydroforming tech
– Low noise and smooth running
– Wide temperature range and solid 16 bar pressure capability
– Comes ready with galvanized flanges, bolts, nuts, and gaskets
| Medium | Clean water |
| Flow | 0.6 to 240 m³/h |
| Head | 22 to 66 m |
| Power | 1.1 to 37 Kw |
| Hz | 50Hz / 60Hz |
