Applications
1.Applicable to wastewater treatment systems in construction engineering,industrial and mining enterprises,municipal engineering,etc.
2.Sewage discharge,sewage relay,and sewage treatment in urban environmental protection systems;
3.Exploration and mining auxiliary equipment;
4.Wastewater discharge from food processing,medical facilities,seawater drainage,and ship hull water;
5.Agricultural irrigation,rural biogas digesters,fish farming,fountains,water spraying,etc.
Product Overview

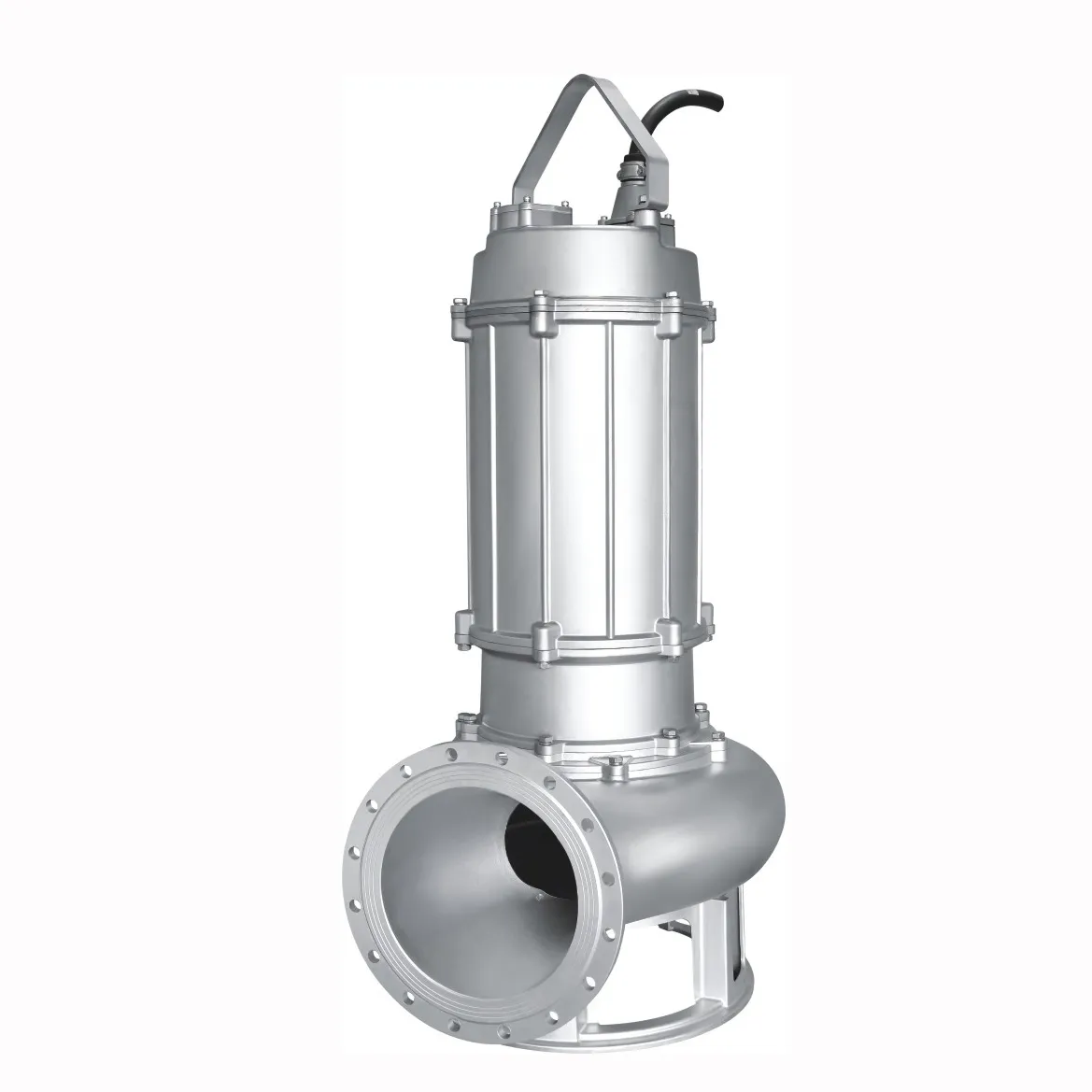

The WQ(D)-S stainless steel precision-cast submersible sewage pump features a stainless steel precisioncast casing,offering pollution-free and corrosion-resistant properties,expanding its application range in water supply and drainage.The impeller employs a closed-loop dual-flow-channel design;due to the symmetrical flow channels,it boasts good balance,smooth operation,and low vibration,increasing product lifespan.The flow channels have strong throughput capacity,with measured efficiency exceeding national standards,resulting in energy savings and reduced consumption.
The designed submersible motor has IP68 protection and F-class insulation.
Submersible cooling provides excellent performance,resulting in low actual temperature rise and long motor insulation life.
Models below 7.5kW are equipped with overcurrent protection devices to ensure automatic power cut-off in case of motor malfunction.
| Flow | 25 to 1500 m³/h |
| Head | 4 to 50 m |
| Power | 11 to 45 Kw |
| Hz | 50Hz / 60Hz |
